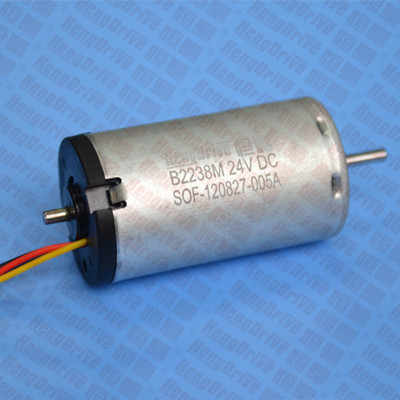

B2238M 直流无刷电机

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:特征:双转向信号功能,锁定保护,低惯量,,低噪音,低电磁干扰,超长寿命3000-15000小时以上
  • 订购热线:400-0755-631
  • 下载资料:资料下载


    B2238M

    Output Power 输出功率: 1W~6W

    Weight 重量: 54g (Approx.)

    Brushless DC Motor-Typical Application 直流无刷电机-典型应用

    Home Application: Small Appliance, Electric Curtain, Electric Windows/Door,

    Small Cross-flow Fan

    家用电器:小家电,电动窗帘,电动门窗,小型贯流风机

    Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer,

    Centrifugal Machine

    医疗器械:医疗泵,手术器械,搅拌机,离心机

    Industry Facilities: Printing Machine, Binding Machine, Cutting Machine,

    Electric Valve

    工业设备:印刷机,装订机,裁剪机,电动阀门

    Business Equipment: Cash Register, ATM, TV Set Frame

    商业设备:点钞机,ATM机,电视机架

    Personal Care: Massager, Vibrator, Malaxation Apparatus, Scrub Apparatus

    个人护理:按摩器,震动器,揉捏器,磨砂器



    Model

    型号

    (Brushless DC 无刷)

    电压 Voltage(V)

    No Load 空载

    Rated Load 额定负载

    Starting 起动

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B2238M-S01

    5-14

    6

    4000

    0.09

    4.61

    3075

    0.45

    1.49

    20.0

    0.8

    B2238M-S02

    8-26

    12

    4480

    0.04

    3.92

    3490

    0.19

    1.44

    17.7

    0.85

    B2238M-S03

    8-26

    24

    9980

    0.08

    5.886

    8090

    0.33

    4.98

    30.7

    0.75

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-15000hrs

    特征:双转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰,超长寿命3000-15000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

    Outline Drawing 外形图:

    Usable machine screw length 2.5mm max. from motor mounting surface

    Unit: Millimeter

    Performance Curve 性能曲线:

    B2238M-S02                 12V

    B2238M-S03               24V
