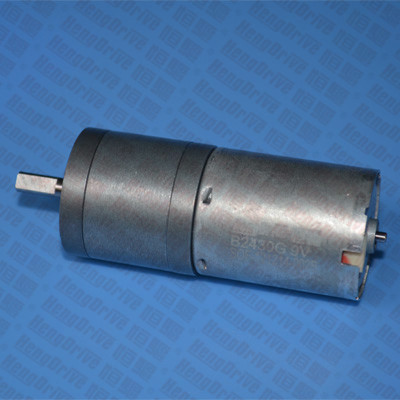

B2430G 无刷直流减速电机

  • 所属分类:[直流无刷-减速齿轮电机]
  • 产品简介:特征:双转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰
  • 订购热线:400-0755-631
  • 下载资料:资料下载

    B2430G

    Output Power 输出功率: 1W~8W

    Weight 重量: 110g (Approx.)

    Brushless DC Gear Motor-Typical Application 无刷直流减速电机-典型应用

    Home Application: Electric Window, Electric Curtain, Actuator, Small Appliances, Portable Equipment

    家用电器:电动窗,电动窗帘,小家电,便携式器材

    Industry Facility: Transmission Equipment, Gear System, Actuator

    工业设备:传动机械,齿轮系统,致动器

    Electronic Equipment: Electric Valve, Small Switcher, Lighting Adjustor, Small Percussion Drill

    电控设备:电动阀门,小型转换器,灯光调节器,电动扳手

    Business Equipment: Electric Gate, Banking Facility, ATM, Vending Machine

    商业设备:电动门禁,银行设施,ATM机,售卖机

    Personal Care: Massager, Stroker, Vibrator   个人护理:按摩器,摩挲器,振动器



    Model

    型号

    电压 Voltage(V)

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (Nm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (Nm)

    Current (A)

    B2430G-S01

    (Gear Ratio 46.9)

    8-26

    12

    145

    0.17

    0.331

    104

    0.80

    3.62

    1.17

    1.5

    B2430G-S02

    (Gear Ratio 78)

    8-26

    24

    109

    0.16

    0.235

    100

    0.32

    2.48

    2.76

    1.5

    B2430G-S02

    (Gear Ratio 150)

    8-26

    12

    47

    0.13

    0.588

    35

    0.54

    2.19

    2.44

    1.5

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI

    特征:双转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power, gear box ratio & dimension, shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、齿轮箱的减速比和尺寸、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

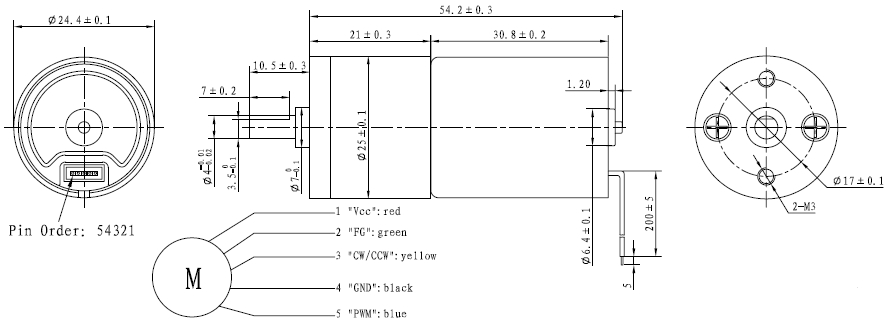

    Outline Drawing 外形图Unit: Millimeter

    BLDC Motor Performance Curve 无刷电机性能曲线:

    B2430G-S01(Gear Motor)                12V

    B2430G-S02(Bare Motor)                 24V
