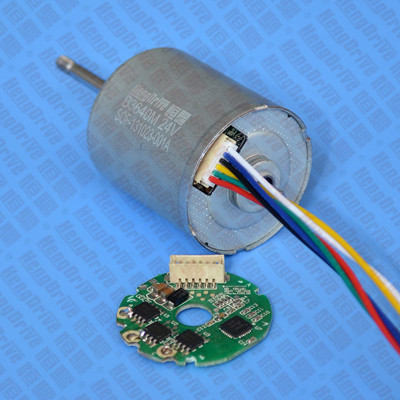

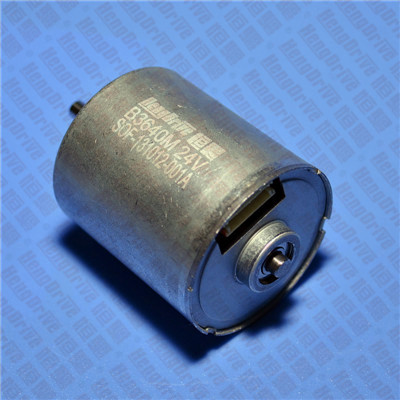

B3640M 无刷电机

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:
    产品尺寸:外径36mm,厚度40mm,轴径4mm。
    特征:双转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰,超长寿命10000-50000小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载

    B3640M

    Output Power 输出功率: 2W~50W

    Weight 重量: 145g (Approx.)

    Brushless DC Motor-Typical Application 直流无刷电机-典型应用

    Automotive Parts: Pump, Fan    汽车部件:泵、风机

    Home Application: White Goods, Small Appliance, Fanner, Coffee Machine,

    Milk Tea Machine

    家用电器:白色家电,小家电,风扇,咖啡机,奶茶机

    Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer,

    Centrifugal Machine

    医疗器械:医疗泵,手术器械,搅拌器,离心机

    Industry Equipment: Electric Valve, Actuator, Micro Pump

    工业设备:阀门,致动器,微型泵

    Business Equipment: Printer, Copier, Projector, ATM, Vending Machine

    商业设备:打印机,复印机,投影机,ATM机,售卖机

    Personal Care: Hair Dryer, Electric Shaver, Massager

    个人护理:风筒,电动须刨,按摩器



    Model

    型号

    电压 Voltage(V)

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B3640M-S01

    8-26

    12

    2360

    0.14

    25.5

    1830

    0.69

    4.9

    174.10

    2.5

    B3640M-S02

    8-26

    12

    7930

    0.56

    19.62

    6800

    1.89

    13.97

    83.22

    3.0

    B3640M-S03

    8-26

    24

    6140

    0.26

    23.5

    5190

    0.85

    12.8

    229.05

    2.5

    B3640M-S04

    8-26

    24

    16020

    0.36

    9.81

    14940

    0.98

    15.35

    90.68

    2.5

    B3640M-S05

    8-26

    24

    27685

    0.47

    19.62

    22191

    2.88

    45.59

    98.89

    5.0

    B3640M-S06

    12-40

    36

    20686

    0.29

    18

    16726

    1.30

    31.53

    94.02

    2.5

    B3640M-S07

    8-26

    24

    7046

    0.28

    56.00

    5156

    1.80

    30.23

    208.79

    2.5

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs

    特征:双转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰,超长寿命10000-50000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

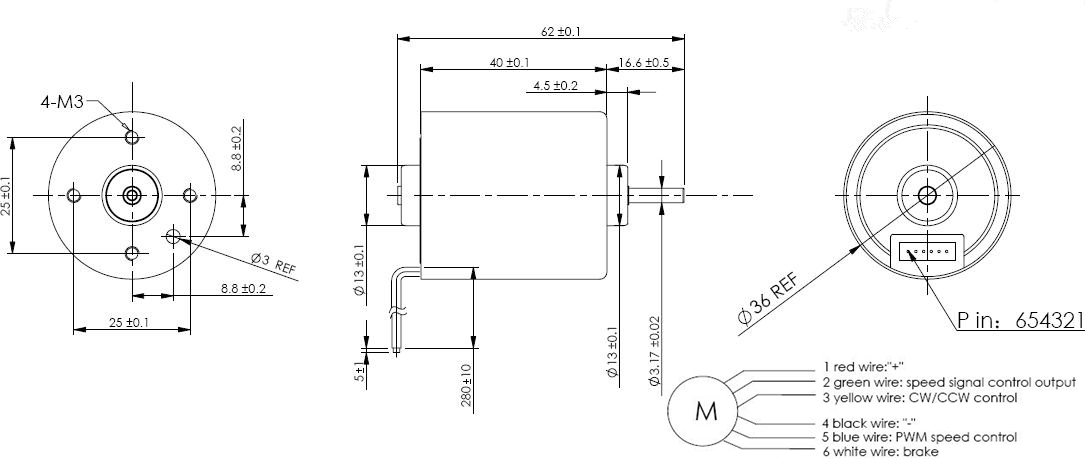

    Outline Drawing 外形图:

    Usable machine screw length 4.0mm max. from motor mounting surface

    Unit: Millimeter

    Performance Curve 性能曲线:

    B3640M-S01                12V

          B3640M-S05           24V
