B1625MG 无刷直流减速电机

    B1625MG

    Output Power 输出功率: 0.1W~1W

    Weight 重量: 40g (Approx.)

    Brushless DC Gear Motor-Typical Application

    无刷直流减速电机-典型应用

    Communication Device: Antenna RCU 通信设备天线控制单元

    Automotive Parts: Micro Pump, Switcher  汽车部件:微型泵,切换器

    Medical Apparatus: Medical Pump, Liquid Pump, Gas Pump

    医疗器械:医疗泵,液泵,气泵

    Industry Equipment: Micro Pump, Micro Valve, Instrument, Meter

    电动工具:微型泵,微型阀门,仪器仪表

    Personal Care: Skin Care, Beauty Apparatus

    个人护理:皮肤护理、美容器材



    Model

    型号

    电压 Voltage(V)

    No Load 空载

    Rated Load 额定负载

    Stall堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (Nm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (Nm)

    Current (A)

    B1625MG-S01

    (Gear Ratio 96 )

    5-13

    5

    45

    0.03

    0.043

    35

    0.09

    0.16

    0.214

    0.9

    B1625MG-S02

    (Gear Ratio 64 )

    5-13

    12

    115

    0.03

    0.037

    100

    0.10

    0.46

    0.272

    0.8

    B1625MG-S03

    (Gear Ratio 256 )

    5-13

    6

    40

    0.07

    0.186

    31

    0.25

    0.85

    0.9

    0.9

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI

    特征:双转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power, gear box ratio & dimension, shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、齿轮箱的减速比和尺寸、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

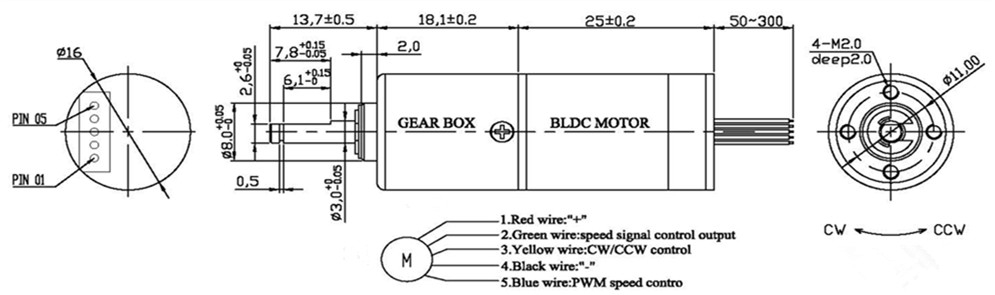

    Outline Drawing 外形图:  (Unit: Millimeter)

    BLDC Motor Performance Curve 无刷电机性能曲线:

    B1625MG-S01 (Bare Motor)         5V

      B1625MG-S02(Bare Motor)      12V
