外转子无刷直流电机B2819S

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:特征: 慢煮机专用外转子直流无刷电机,三根相线,低噪音,低电磁干扰,超长寿命3000-15000小时。
  • 订购热线:400-0755-631
  • 下载资料:资料下载



    B2819S

    Outer Rotor

    Output Power 输出功率: 0.05W~3.5W

    Weight 重量: 57g (Approx.)

    外转子

    3-Phase Brushless DC Motor-Typical Application 三相无刷直流电机-典型应用





    Home Application: Sous Vide  家用电器:慢煮机,搅拌器



    Model

    型号

    电压 Voltage(V)

    No Load 空载

    Rated Load 额定负载

    Stall堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B2819S-S01

    5-14

    12

    2951

    0.06

    5

    2622

    0.21

    1.37

    44.64

    1.38

    B2819S-S02

    5-14

    12

    3129

    0.05

    15

    2153

    0.48

    3.38

    48.04

    1.43

    Characteristic: With U,V,W wires, Low noise, Low EMI, Long life 3000-15000hrs   特征: 三根相线,低噪音,低电磁干扰,超长寿命3000-15000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

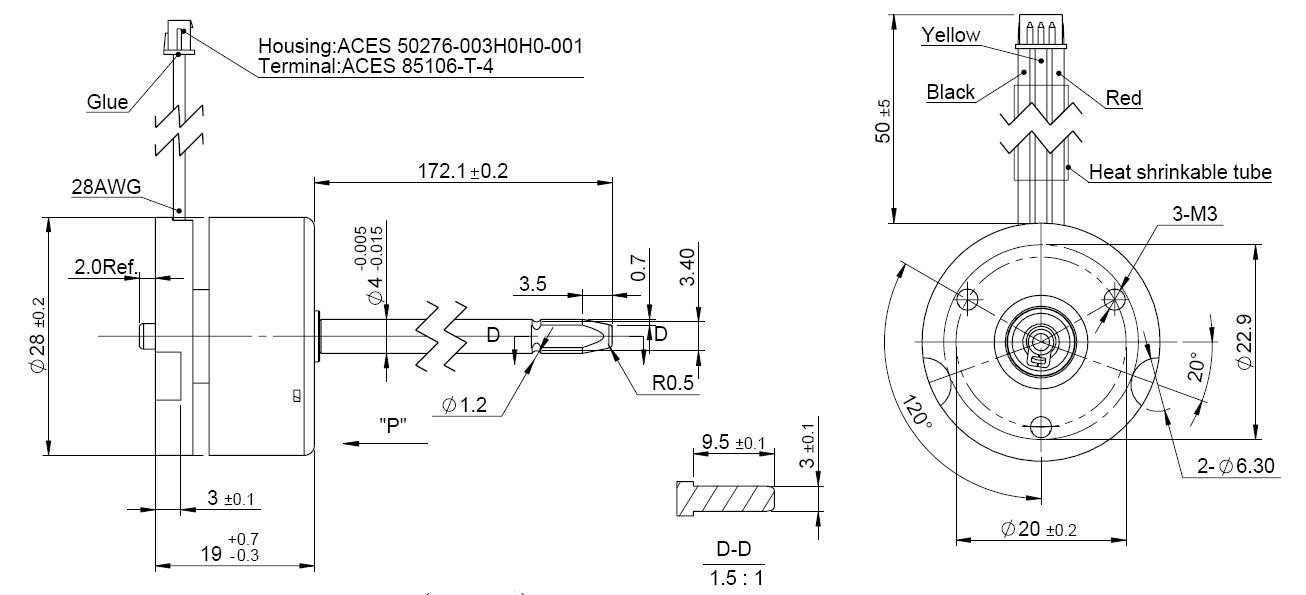

    Outline Drawing 外形图:  (Unit: Millimeter)

    慢煮机电机

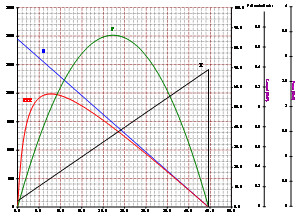

    Performance Curve 性能曲线:

    B2819S-S01              12V

    B2819S-S02               12V

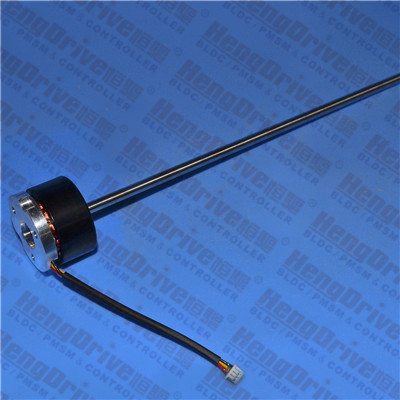

    慢煮机长轴电机          慢煮机无刷电机
