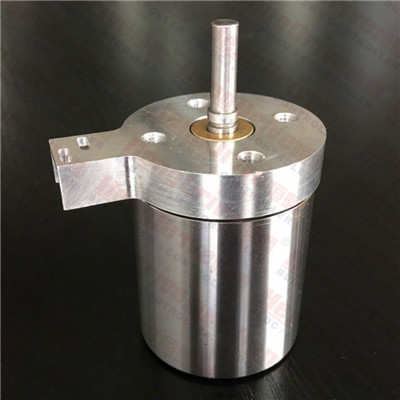

B3745S 外转子直驱无刷直流电机

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:特征:双转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰,超长寿命10000-30000小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载



    B3745S
    Outer Rotor

    Output Power 输出功率: 2W~25W

    Weight 重量: 150g (Approx.)

    外转子

    Directly Drive Brushless DC Motor (DD BLDC)-Typical ApplicationIn development直驱无刷直流电机-典型应用(研发中

    Automotive parts: Laser Radar Scanner

    汽车部件:激光雷达扫描器

    Industry Facility: Satellite Antenna Direct Drive Rotation Gimbals

    工业设备:卫星天线直驱云台

    Others: Direct Drive Rotation PTZ(pan-tilt-zoom)

    其它:直驱旋转云台

    Model
    型号

    Voltage(V) 电压

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B3745S-S01
    36-48
    36
    505
    0.09
    176
    365
    0.53
    6.73
    634
    2.5

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-30000hrs

    特征:双转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰,超长寿命10000-30000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

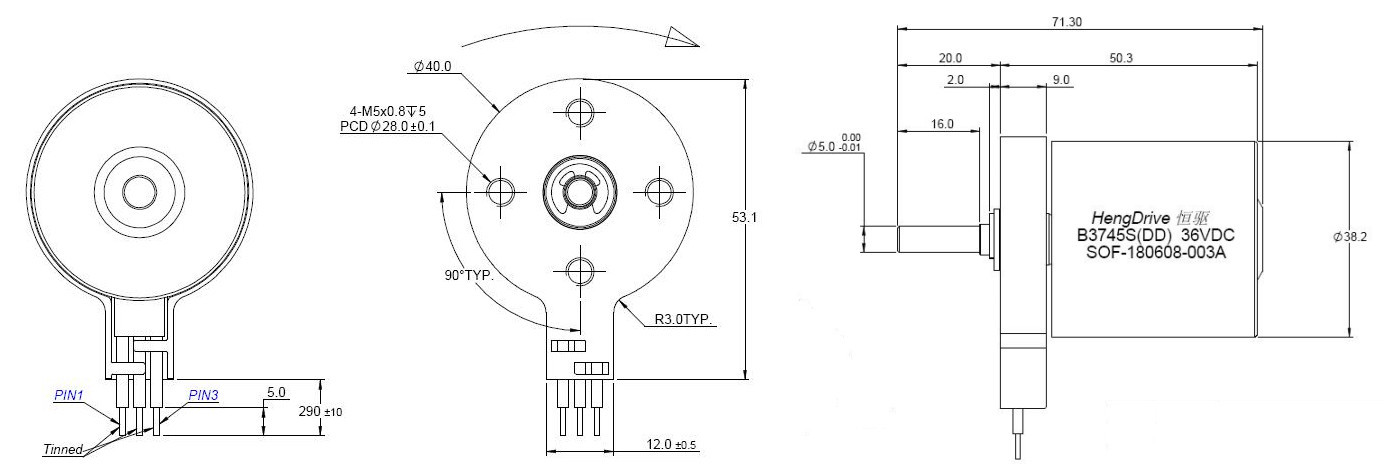

    Outline Drawing 外形图:

                                                                         Unit: Millimeter

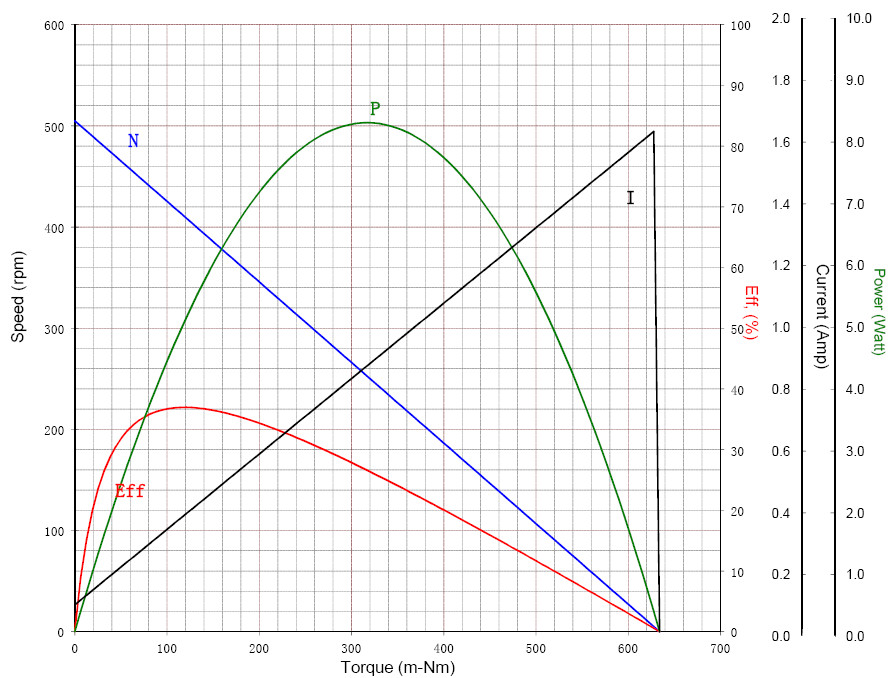

    Performance Curve 性能曲线:

    B3745S-S01            36V
