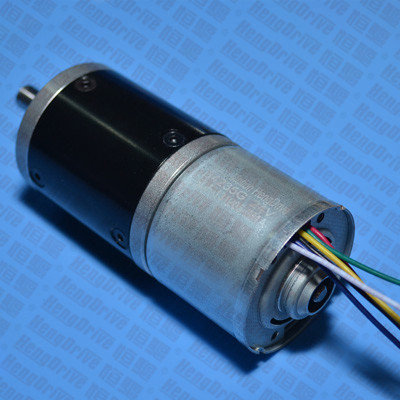

B4235G 无刷直流减速电机

    B4235G

    Output Power 输出功率: 8W~25W

    Weight 重量: 380g (Approx.)

    Brushless DC Motor-Typical Application 直流无刷电机-典型应用

    Automotive Parts: Pump, Fan   汽车部件:泵,风机

    Home Application: White Goods, Small Appliance, Fanner, Coffee Machine,

    Milk Tea Machine

    家用电器:白色家电,小家电,风扇,咖啡机,奶茶机

    Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer,

    Centrifugal Machine

    医疗器械:医疗泵,手术器械,搅拌器,离心机

    Industry Equipment: Pump, Portable Screwdriver, Small Compressor

    工业设备:泵,手持电批,小型压缩机

    Business Equipment: Printer, Copier, Projector, ATM, Vending Machine

    商业设备:打印机,复印机,投影机,ATM机,售卖机

    Personal Care: Hair Dryer, Electric Shaver, Massager

    个人护理:风筒,电动须刨,按摩器



    Model

    型号

    电压 Voltage(V)

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (Nm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (Nm)

    Current (A)

    B4235G-S01

    (Gear Ratio 294)

    8-26

    12

    24

    0.36

    5.10

    16

    2.27

    8.54

    25.2

    3.0

    B4235G-S02

    (Gear Ratio 294)

    8-26

    24

    16

    0.21

    7.21

    12

    1.49

    9.01

    25.4

    2.5

    B4235G-S03   (Gear Ratio 250.7)

    8-26

    24

    7.8

    0.1

    8.03

    5.6

    0.4

    4.69

    12.36

    2.5

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI

    特征:双转向,信号功能,无级调速,低噪音,低电磁干扰

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power, gear box ratio & dimension, shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、齿轮箱的减速比和尺寸、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

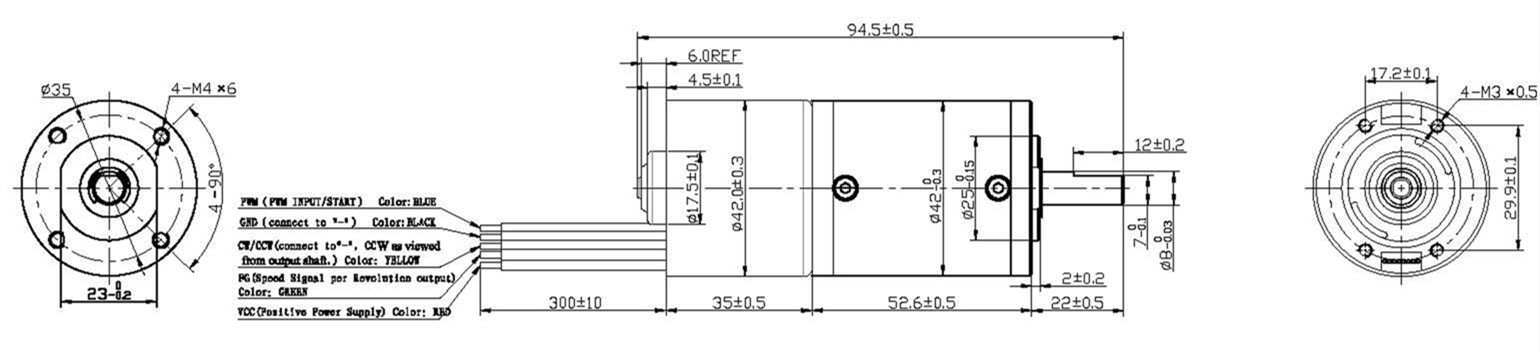

    Outline Drawing 外形图Unit: Millimeter

    BLDC Motor Performance Curve 无刷电机性能曲线:

    B4235G-S01(Bare Motor 单体电机)        12V

    B4235G-S02(Bare Motor 单体电机)        24V
