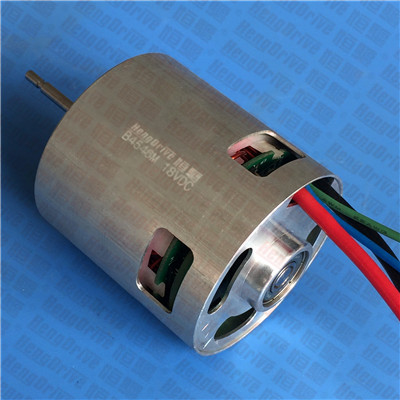

B4546M 直流无刷电机

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:特征:双转向,信号功能,无级调速,低噪音,低电磁干扰,超长寿命10000-50000小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载



    B4546M

    Output Power 输出功率: 50W~250W

    Weight 重量: 300g (Approx.)

    Brushless DC Motor-Typical ApplicationIn development

    直流无刷电机-典型应用(研发中

    Home Application: Vacuum Cleaner, Stirrer, High Speed Fan

    家用电器:吸尘器,搅拌器,高速风扇

    Personal Care: Hair Dryer    个人护理:电吹风

    Medical Apparatus: Medical Stirrer, Centrifugal Machine

    医疗器械:医用搅拌器,离心机,制氧机

    Industry Equipment: Clearing Machine, Blower Fan   工业设备:清洁机,鼓风机

    Business Equipment: Cordless Drill, Electric Tool    商业设备:充电钻,电动工具



    Model

    型号

    Voltage(V) 电压

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B4546M-S01

    8-26

    18

    18536

    1.36

    32

    15321

    4.58

    51.5

    184.9

    12

    B4546M-S02

    8-26

    18

    27377

    1.98

    40

    23141

    7.67

    96.9

    258.7

    20

    B4546M-S03

    8-26

    18

    35494

    2.61

    65

    29515

    14.3

    201

    384.7

    45

    B4546M-S04

    8-26

    11

    30039

    3.57

    36

    25823

    12.8

    97.3

    256.4

    69

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs

    特征:双转向,信号功能,无级调速,低噪音,低电磁干扰,超长寿命10000-50000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

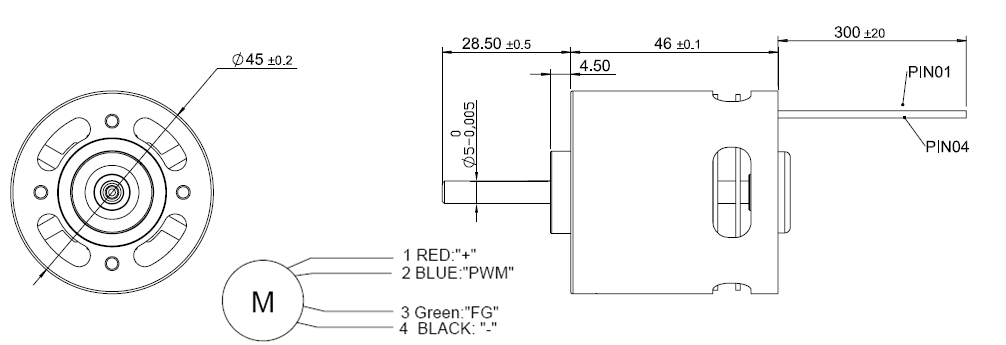

    Outline Drawing 外形图:



    Usable machine screw length 4.0mm max. from motor mounting surface

    Unit: Millimeter

    Performance Curve 性能曲线:

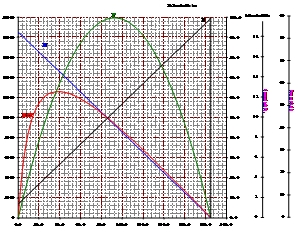

    B4546M-S01                 18V

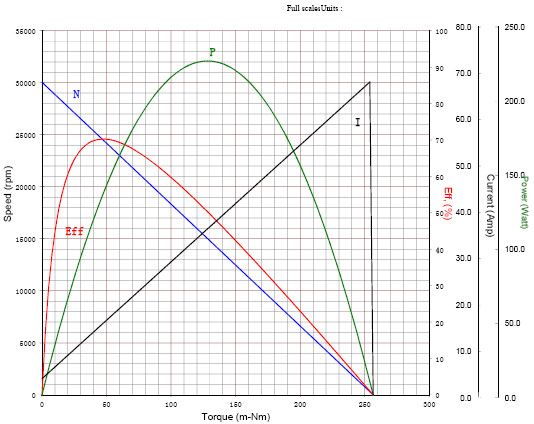

    B4546M-S04               11V
