B5020G 无刷直流减速电机

  • 所属分类:[直流无刷-减速齿轮电机]
  • 产品简介:特征:双转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰
  • 订购热线:400-0755-631
  • 下载资料:资料下载

    B5020G

    Output Power 输出功率:    0.3-11W

    Weight 重量:93g (Approx.)

    Brushless DC Gear Motor-Typical Application (In development) 无刷直流减速电机-典型应用(研发中

    家用电器:微波炉

    Home Appliance: Microwave Oven



    Model

    型号

    Voltage(V) 电压

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (Nm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (Nm)

    Current (A)

    B5020G-S01

    Gear Ratio 34

    8-30

    28

    65

    0.029

    1.00

    24

    0.235

    2.515

    1.489

    0.363

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI

    特征:双转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power, gear box ratio & dimension, shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、齿轮箱的减速比和尺寸、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

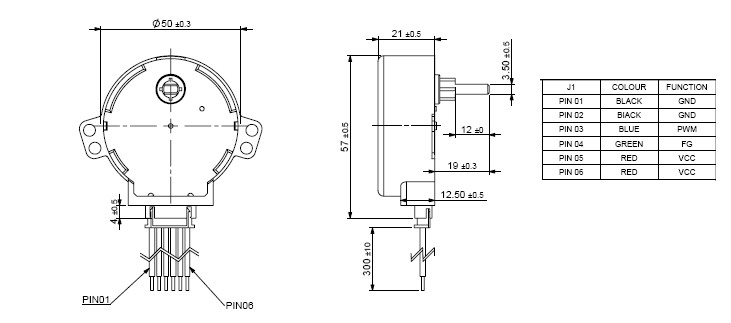

    Outline Drawing 外形图:

                                                                             Unit: Millimeter

    LDC Motor Performance Curve 无刷电机性能曲线:

    B5020G-S01           28V
