B5672M 无刷直流电机

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:特征:双转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰,超长寿命10000-50000小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载





    B5672M

    Output Power 输出功率:30W-350W

    Weight重量: 500g (Approx.)
    Brushless DC Motor-Typical Application无刷直流电机-典型应用

    Water Proof : IP67  防护等级:IP67

    Automobile Parts: Parking Heater, Oil Pump, Fuel Pump

    汽车部件:驻车加热器,机油泵,燃油泵

    Home Appliance: Water Pump, Air Pump

    家用电器:水泵,气泵

    Business Apparatus: Medical Pump, Water Pump, Liquid Pump

    商业设备:医疗泵,水泵,液泵

    Model
    型号

    Voltage(V) 电压

    No Load 空载

    Rated Load 额定负载

    Stall堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B5672M-S01
    8-14
    12
    3278
    0.520
    255
    2680
    7.46
    71.55
    1396.95
    15
    B5672M-S02
    8-26
    24
    3278
    0.26
    255
    2680
    3.73
    71.57
    1398.71
    8
    B5672M-S03
    8-26
    24
    5491
    0.43
    255
    4871
    6.22
    130.06
    2255.69
    15

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs

    特征:双转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰,超长寿命10000-50000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

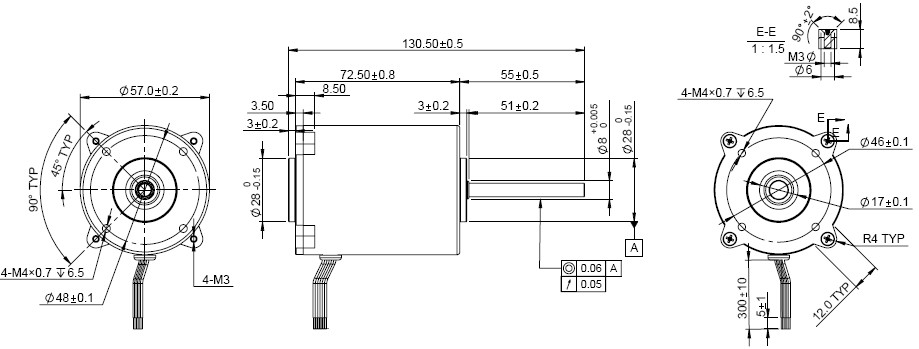

    Outline Drawing 外形图:

    Usable machine screw length 6.0mm max from motor mounting surface                                Unit: Millimeter

    Performance Curve 性能曲线:

    B5672M-S01         12V

    B5672M-S03             24V
