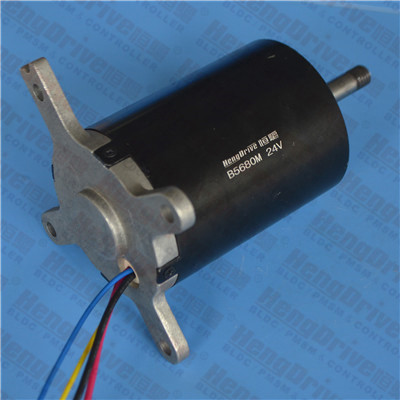

B5680M 直流无刷电机

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:特征:高效率,IP67, 双转向,信号功能,锁定保护,过温保护,过流保护,无级调速,低噪音,低电磁干扰,超长寿命30000小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载

    B5680M

    Output Power 输出功率: 30W~150W

    Weight 重量: 665g (Approx.)

    Brushless DC Motor-Typical Application (In developmentIP67)

    直流无刷电机-典型应用(研发中, IP67

    Automobile Parts: Parking Heater, Oil Pump, Fuel Pump

    汽车部件:驻车加热器,汽车机油泵,燃油泵

    Model
    型号

    Voltage(V) 电压

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B5680M-S01
    8-26
    24
    5695
    0.55
    63
    5053
    1.918
    33.3
    557
    8.0
    B5680M-S02
    8-14
    12
    3230
    0.44
    100
    2850
    2.969
    29.8
    851
    22
    B5680M-S03
    8-26
    24
    7174
    0.67
    170
    5388
    5.233
    95.9
    700
    19.4

    Characteristic: High efficiency, IP67, Signal function available, Thermal protection, High current protection, Stepless speed regulation, CW & CCW, Low noise, Low EMI, Long life 30000hrs   特征:高效率,IP67, 双转向,信号功能,锁定保护,过温保护,过流保护,无级调速,低噪音,低电磁干扰,超长寿命30000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

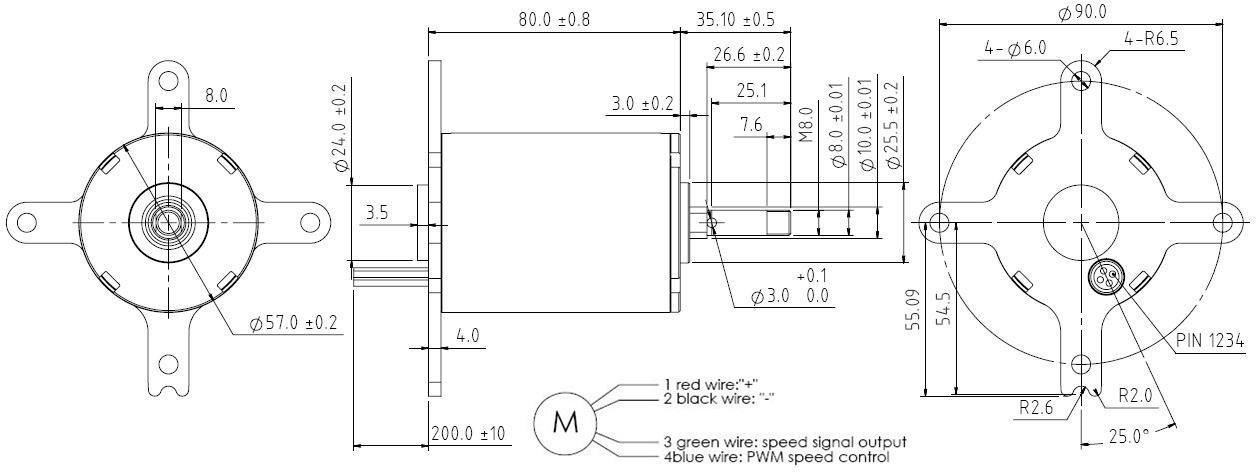

    Outline Drawing 外形图:

    Usable machine screw length 6.0mm max from motor mounting surface                           Unit: Millimeter

    Performance Curve 性能曲线:

    B5680M-S02             12V

    B5680M-S03              24V
