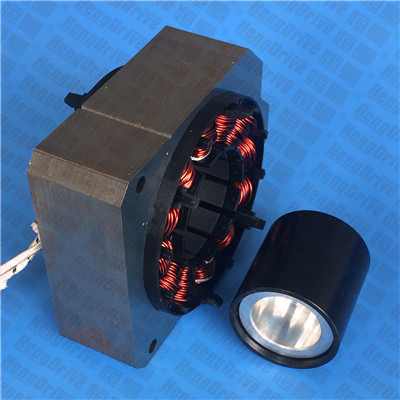

B78M 直流无刷电机

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:特征:双转向,信号功能,无级调速,低噪音,低电磁干扰,超长寿命10000-50000小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载



    B78M Series

    Output Power 输出功率: 20W~130W

    Weight 重量: 1000g (Approx.)

    Brushless DC Motor-Typical Application 直流无刷电机-典型应用



    Specialized for Variable Frequency Refrigerator Compressor, Pump



      专用于冰箱变频压缩机和泵



    Model

    型号

    电压 Voltage(V)

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B7825M-S01

    8-26

    12

    4989

    0.95

    160

    3920

    6.99

    65.68

    744.7

    29.09

    B7830M-S01

    8-26

    12

    5010

    0.71

    250

    3538

    9.48

    92.62

    849.33

    30.49

    B7830M-S02

    226-375VDC

    310

    5151

    0.043

    290

    3957

    0.467

    120.2

    1250.62

    1.87

    B7833M-S01

    8-26

    12

    4921

    0.821

    290

    3525

    10.71

    107.5

    1022.1

    35.66

    B7835M-S01

    8-26

    12

    4985

    0.8

    290

    3544

    10.47

    103.9

    968.83

    34.26

    B7835MS02

    AC110-230V

    220

    5151

    0.043

    290

    3957

    0.467

    120.2

    1250.62

    1.87

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs

    特征:双转向,信号功能,无级调速,低噪音,低电磁干扰,超长寿命10000-50000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

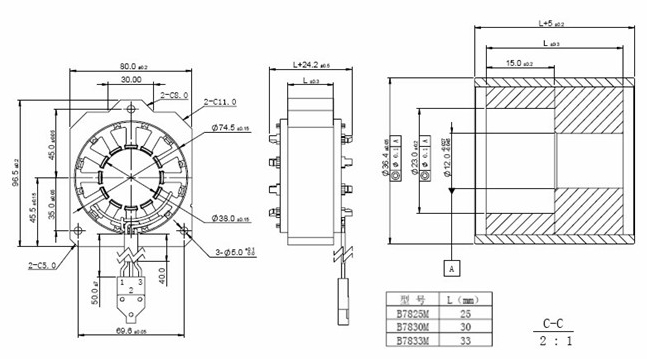

    Outline Drawing 外形图:



    Usable machine screw length 4.0mm max. from motor mounting surface

    Unit: Millimeter

    Performance Curve 性能曲线:

    B7825M-S01                 12V

    B7830M-S01               12V
