富士康科技集团控股子公司
专业研发、生产无刷电机和永磁同步电机及其驱动器

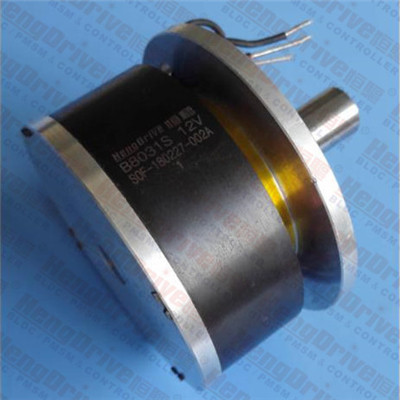

B8031S 三相无刷直流电机

    B8031S

    Outer Rotor

    Output Power 输出功率: 20W~100W

    Weight 重量: 500g (Approx.)

    外转子

    3-Phase Brushless DC Motor-Typical Application (In development)

    三相无刷直流电机-典型应用(研发中

    Automotive Parts: Auto Pumps, Auto Air Conditioning Compressor

    汽车部件:汽车泵,汽车空调压缩机

    Medical Apparatus: Medical Pump, Electric Joint  医疗器械:医疗泵,电动关节

    Business Equipment: Electrical Actuator, Robot Joint Drive

    商业设备:电动致动器,机器人关节



    Model

    型号

    Voltage(V) 电压

    No Load 空载

    Rated Load 额定负载

    Stall堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B8031S-S01

    5-14

    12

    3018

    4.05

    306

    2657

    9.34

    85.14

    2556

    20

    Characteristic: With U,V,W wires, Low noise, Low EMI, Long life 3000-15000hrs   特征: 三根相线,低噪音,低电磁干扰,超长寿命3000-15000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

    Outline Drawing 外形图:



                                                                     Unit: Millimeter

    Performance Curve 性能曲线:

    B8031S-S01              12V
