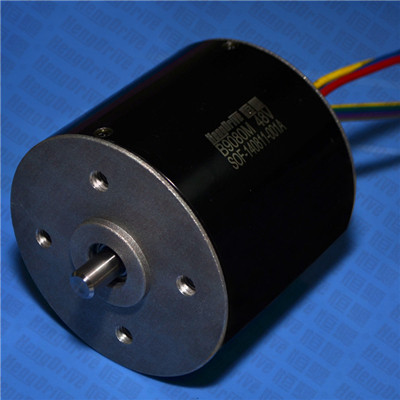

B9080M 直流无刷电机

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:特征:双转向,信号功能,锁定保护,无极调速,低噪音,低电磁干扰,超长寿命10000-50000小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载

    B9080M

    Output Power 输出功率: 150W~600W

    Weight 重量: 1200g (Approx.)

    Brushless DC Motor-Typical Application 直流无刷电机-典型应用

    Automobile Parts: Auto Pumps, Fan, Electro Carrier, Auto Actuator

    汽车部件:汽车泵,风机,电动小车,汽车致动器

    Home Application: Electric Window, Electric Door, Blender, Shredder,

    Meat Grinder

    家用电器:电动窗,电动门,搅拌机,绞肉机,粉碎机

    Medical Apparatus: Medical Bed, Electric Wheel Chair, Surgery Tools,

    Operating Table, Centrifugal Machine

    医疗器械:医疗床,电动轮椅,手术器械,手术台,离心机

    Power Tools: Screwdriver, Drill, Air Compressor

    电动工具:电动螺丝批,电钻,气体压缩机

    Industry Equipment: Power Machine, Transmission gear equipment

    工业设备:动力、传动设备

    Personal Life Product: Massager, Sport Apparatus 个人生活产品:按摩器,运动器材



    Model

    型号

    Voltage(V) 电压

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B9080M-S01

    8-26

    24

    3380

    0.74

    500

    2820

    7.75

    147.5

    3002

    30

    B9080M-S02

    8-26

    24

    2901

    0.73

    1000

    2261

    11.38

    236.8

    4501

    30

    B9080M-S03

    8-26

    24

    5974

    1.03

    800

    4782

    20.73

    400.6

    4009

    50

    B9080M-S04

    8-26

    24

    5986

    1.03

    1300

    4412

    33.05

    600.6

    4943

    50

    B9080M-S05

    8-26

    24

    3400

    1.73

    1801

    2481

    26.76

    468.1

    6664

    50

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs   特征:双转向,信号功能,锁定保护,无极调速,低噪音,低电磁干扰,超长寿命10000-50000小时

    Notice: Data in this typical specification sheet are for other certain customer, the specific BLDC motor performance and dimension can be changed by adjusting winding, magnetic field, controller parameter and relevant mechanical factor to meet different customer requirement.

    注意:上述规格仅针对特定客户,对于您的特殊要求,可以通过调整绕组、磁场、控制参数和相关机械参数来达到您的不同要求。

    Outline Drawing 外形图:

    Usable machine screw length 8.0mm max. from motor mounting surface

    Unit: Millimeter

    Performance Curve 性能曲线:

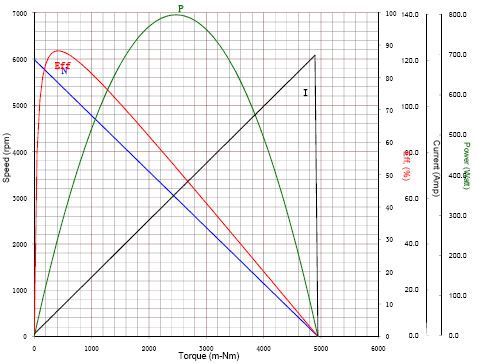

    B9080M-S02                 24V

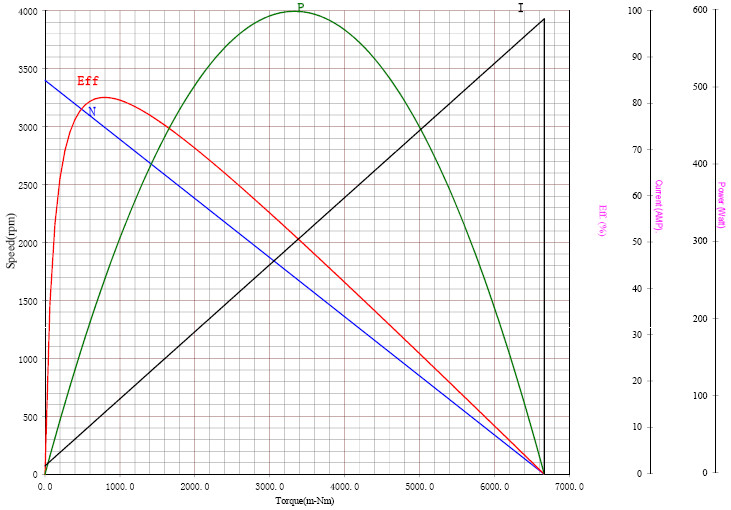

    B9080M-S04                 24V
