BA460M 直驱无刷直流电机

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:特征:双转向,信号功能,锁定保护,无极调速,低噪音,低电磁干扰,超长寿命10000-50000小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载

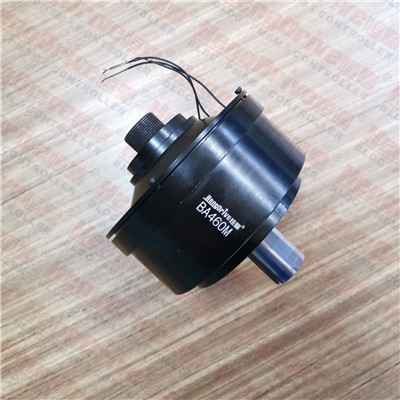

    BA460M

    Output Power 输出功率: 50W~120W

    Weight 重量: 2.86Kg (Approx.)

    Directly Drive Brushless DC Motor (DD BLDC) -(In development)

    直驱无刷直流电机-典型应用 (研发中)

    With External Driving Controller 带外置驱动控制器

    Home Application: Washing Machine    家用电器:洗衣机

    Business Equipment: Game Racing Wheel, Wheelchair Hub Motor

    商业设备:游戏赛车,轮椅轮毂电机



    Model

    型号

    Voltage(V) 电压

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (Nm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (Nm)

    Current (A)

    BA460M-S01

    12-28

    24

    1076

    0.89

    2

    522

    7.35

    116

    3.91

    15

    BA460M-S02

    12-28

    24

    936

    0.68

    1.3

    634

    4.57

    86.4

    3.99

    15

    BA460M-S03

    12-28

    24

    963

    0.71

    0.65

    789

    2.69

    53.8

    4.13

    15



    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs   特征:双转向,信号功能,锁定保护,无极调速,低噪音,低电磁干扰,超长寿命10000-50000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

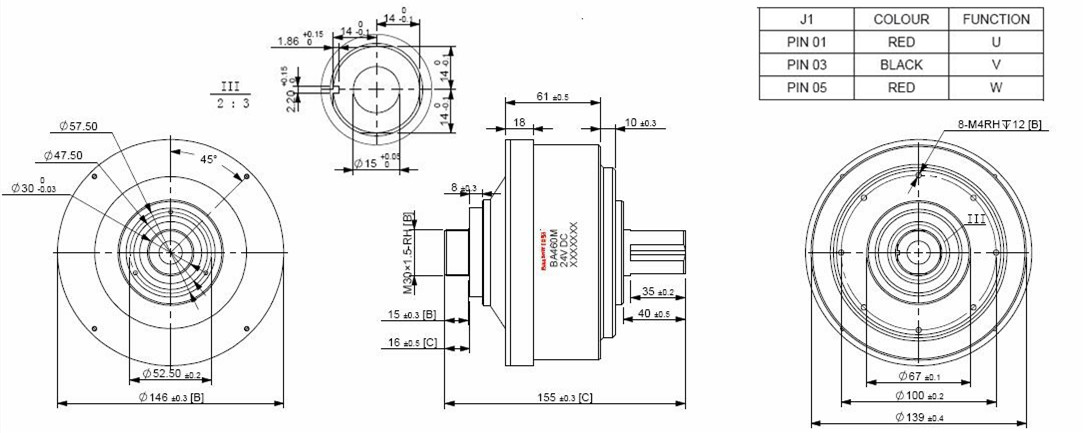

    Outline Drawing 外形图:



    Usable machine screw length 8.0mm max. from motor mounting surface



    Unit: Millimeter

    Performance Curve 性能曲线:

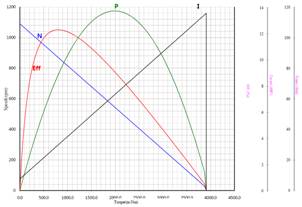

    BA460M-S01                      24V

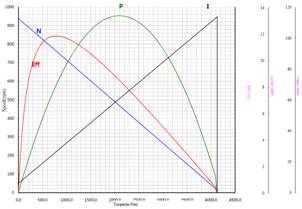

    BA460M-S03                        24V
