D1215G 齿轮电机



    D1215G

    Output Power 输出功率: 0.3W~2W

    Weight 重量: 20g (Approx.)

    PM DC Gear Motor-Typical Application 有刷直流减速电机-典型应用



    智能电表小型重合闸 - Small Reclosing for Smart Ammeter



    智能门锁 – Intelligent Lock



    Model

    型号

    电压 Voltage(V)

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (Nm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (Nm)

    Current (A)

    D1215G-S01

    (Gear Ratio 380)

    5-12

    6

    56

    0.03

    0.06

    50

    0.11

    1.12

    0.61

    0.85

    Characteristic: Low noise, Low Vibration, High Reliability        特征:低噪音,低震动,高可靠性

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power, gear box ratio & dimension, shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、齿轮箱的减速比和尺寸、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

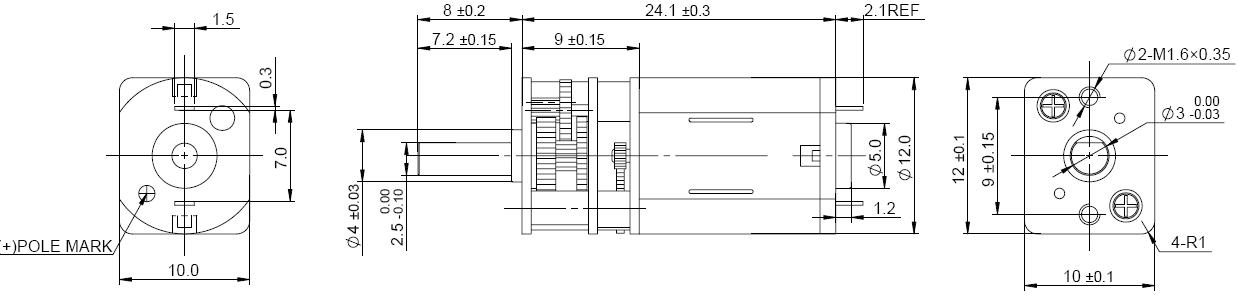

    Outline Drawing 外形图:  (Unit: Millimeter)

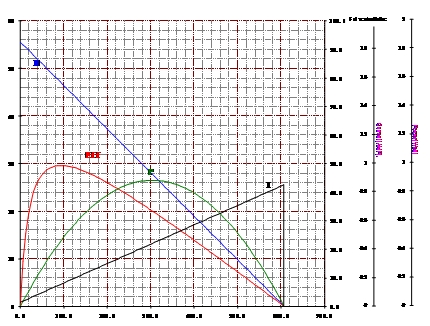

    PMDC Gear Motor Performance Curve 直流减速电机性能曲线:

    D1215G-S01(Gear Motor)                  12V
