B2440M无刷直流电机
- 所属分类：[全部恒驱直流无刷电机]
- 产品简介：特征：双转向，信号功能，锁定保护，无级调速，低噪音，低电磁干扰，超长寿命3000-15000小时
- 订购热线：400-0755-631
- 下载资料：资料下载
|
|
B2440M |
Output Power 输出功率: 1W~20W |
Weight 重量: 82g (Approx.) |
|
Brushless DC Motor-Typical Application（In development） 直流无刷电机-典型应用（研发中） Automotive Parts: Pump 汽车部件：微型泵 Home Application: White Goods, Small Appliance, Fanner, Electric Curtain 家用电器：白色家电，小家电，电风扇，电动窗帘 Medical Apparatus: Medical Pump, Blood Pressure Meter, Surgery Tools, Medical Stirrer, 医疗器械：医疗泵，血压计，手术器械，搅拌机，离心机 Industry Equipment: Electric Valve, Portable Screwdriver, Air Pump, Water Pump, Vacuum Pump 工业设备：电动阀门，手持电批，气泵，水泵，真空泵 Business Equipment: Printer, Copier, Projector, Scanner, Cash Register 商业设备：扫描仪，点钞机 Personal Care: Hair Dryer, Electric Shaver, Massager 个人护理：风筒，电动须刨，按摩器 |
|||
|
Model 型号 |
Voltage(V) 电压 |
No Load 空载 |
Rated Load 额定负载 |
Stall 堵转 |
||||||
|
Operating Range |
Rated |
Speed (rpm) |
Current (A) |
Torque (mNm) |
Speed (rpm) |
Current (A) |
Output P. (W) |
Torque (mNm) |
Current (A) |
|
|
B2440M-S01 |
4~8 |
5 |
1400 |
0.24 |
17.5 |
927 |
0.72 |
1.70 |
49.5 |
1.5 |
|
B2440M-S02 |
8-26 |
12 |
2652 |
0.17 |
30 |
1781 |
0.83 |
5.60 |
91.3 |
2.5 |
|
B2440M-S03 |
8-26 |
24 |
4380 |
0.14 |
50 |
2923 |
1.02 |
15.3 |
150 |
3.0 |
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-15000hrs 特征：双转向，信号功能，锁定保护，无级调速，低噪音，低电磁干扰，超长寿命3000-15000小时
|
Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement. 注意：上述规格仅针对特定客户，电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。 |

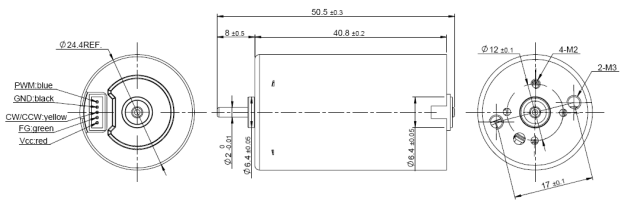

Outline Drawing 外形图:
|
Usable machine screw length 2.0mm max. from motor mounting surface |
Unit: Millimeter |
Performance Curve 性能曲线:
|
B2440M-S03 24V |
