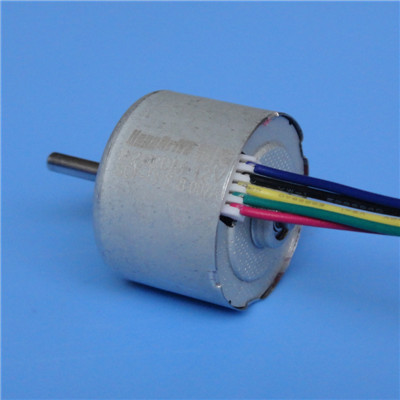

B2820M 直流无刷电机
- 所属分类：[全部恒驱直流无刷电机]
- 产品简介：双转向信号功能，锁定保护，低惯量,，低噪音，低电磁干扰，超长寿命10000小时以上。
- 订购热线：400-0755-631
- 下载资料：资料下载
|
|
B2820M |
Output Power 输出功率: 1W~16W |
Weight 重量: 45g (Approx.) |
|
Brushless DC Motor-Typical Application（In development）直流无刷电机-典型应用(研发中) Home Application: White Goods, Small Appliance, Fanner, Vacuum Cleaner 家用电器：白色家电，小家电，电风扇，吸尘器 Medical Apparatus: Medical Pump, Blood Pressure Meter, Surgery Tools, Medical Stirrer, Centrifugal Machine 医疗器械：医疗泵，血压计，手术器械，搅拌机，离心机 Industry Equipment: Electric Valve, Portable Screwdriver, Air Pump, Water Pump, Vacuum Pump 电动工具：电动阀门，手持电批，气泵，水泵，真空泵 Business Equipment: Printer, Copier, Projector, Scanner 商业设备：打印机，复印机，投影机，扫描仪 Personal Care: Hair Dryer, Electric Shaver, Massager 个人护理：风筒，电动须刨，按摩器 |
|||
|
Model 型号 |
电压 Voltage(V) |
No Load 空载 |
Rated Load 额定负载 |
Stall堵转 |
||||||
|
Operating Range |
Rated |
Speed (rpm) |
Current (A) |
Torque (mNm) |
Speed (rpm) |
Current (A) |
Output P. (W) |
Torque (mNm) |
Current (A) |
|
|
B2820M-S01 |
8-26.4 |
25 |
21648 |
0.164 |
8.00 |
18356 |
0.859 |
15.463 |
52.906 |
4.733 |
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs
特征：双转向，信号功能，锁定保护，无级调速，低噪音，低电磁干扰，超长寿命10000-50000小时
|
Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement. 注意：上述规格仅针对特定客户，电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。 |

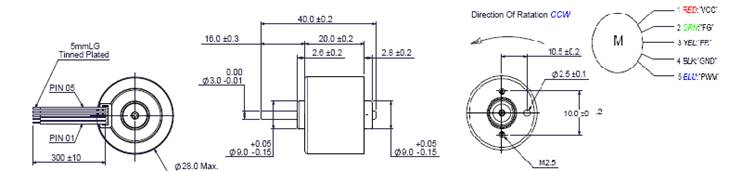

Outline Drawing 外形图:
.jpg)
|
Usable machine screw length 3.0mm max. from motor mounting surface |
Unit: Millimeter |

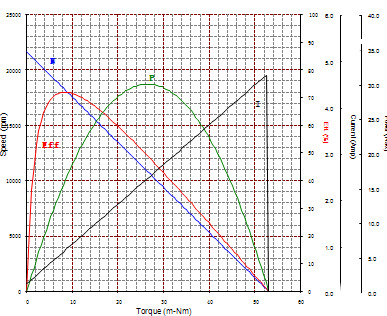

Performance Curve 性能曲线:
|
B2820M-S01 25V |
|
