B6386M 直流无刷电机

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:特征:双转向,信号功能,锁定保护,无极调速,低噪音,低电磁干扰,超长寿命10000-50000小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载





    B6386M

    Output Power 输出功率: 100W-180W

    Weight 重量:1200g (Approx.)

    Brushless DC Motor-Typical Application In development

    直流无刷电机-典型应用(研发中

    Automotive Parts: Pump, Actuator  汽车部件:泵, 致动器

    Medical Apparatus: Medical Bed, Operating Table   医疗器械:医疗床,手术台

    Business Equipment: Adjustable Device, Linear Actuator

    商业设备:可调节设备,线性驱动器

    Industrial Equipment: Harvester, Automation Equipment

    工业设备:农业收割机,工业自动化设备

    Model
    型号

    Voltage(V) 电压

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B6386M-S01
    8-26
    24
    4150
    0.62
    485
    3000
    8.8
    150
    1640
    28.1

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs

    特征:双转向,信号功能,锁定保护,无极调速,低噪音,低电磁干扰,超长寿命10000-50000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

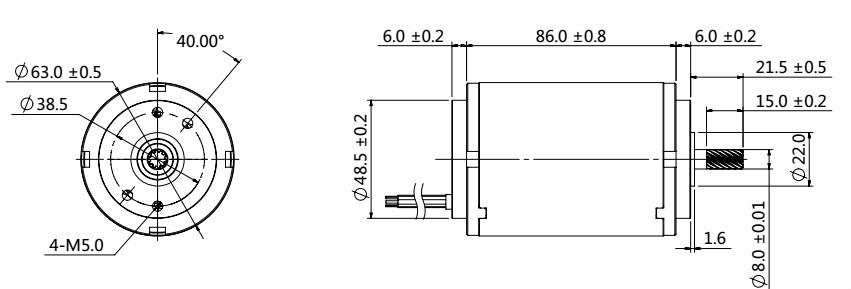

    Outline Drawing 外形图:



    Usable machine screw length 8.0mm max. from motor mounting surface

    Unit: Millimeter

    Performance Curve 性能曲线:

    B6386M-S01                24V
